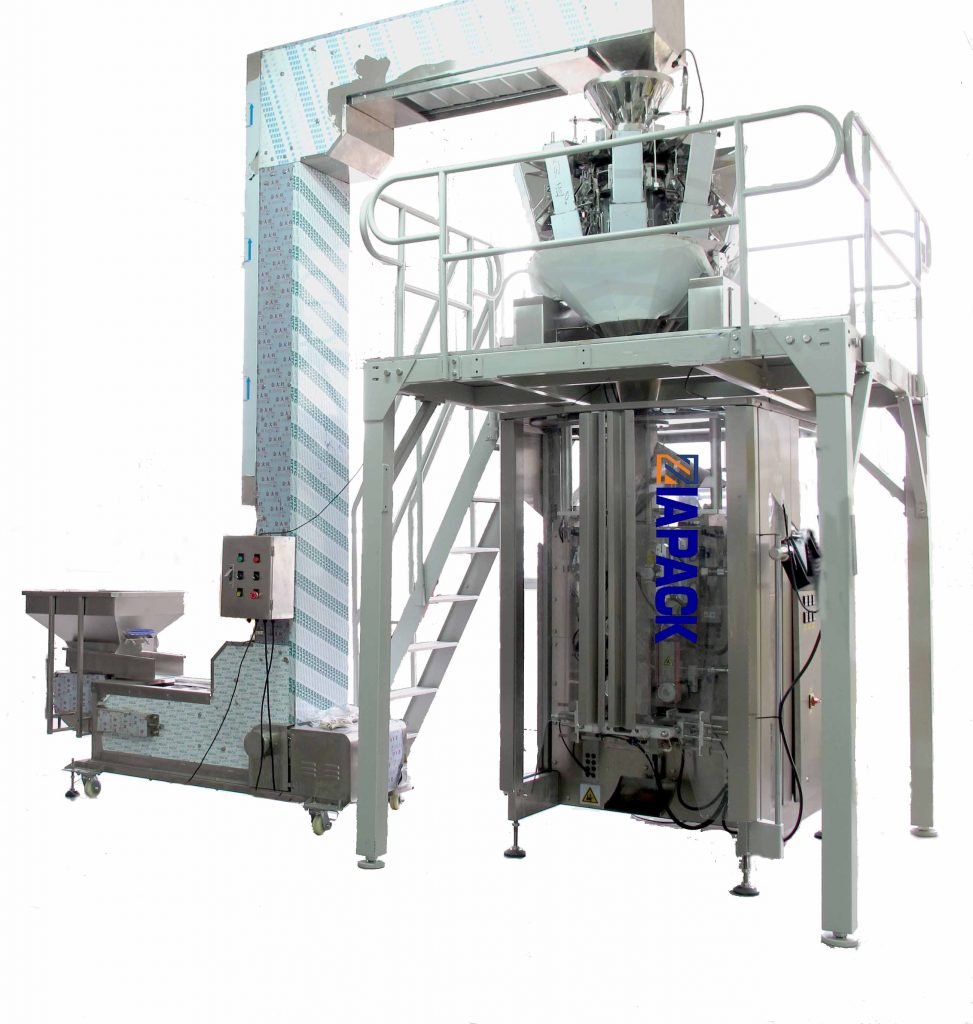

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc. The finished bag with square bottom and vertical side .Can be stand on the table with pretty shape .This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient .All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air valve is SMC. parts which contact with material 、control cabinet 、main frame are made of stain less steel304
Paràmetres tècnics:
Packing speed(MAX): 20-30 bags/min(depend on the weight from 250 gram-1000 gram)
Bag type: Square bottom bag (gusseted bag with square bottom )
Bag size: Front width: 80~190 mm; Side width: 25~60 mm Length: 100~380 mm
Consum d'aire comprimit: 0,6 MPa 350 L/min
Electric requirement: 380V/5.5 kW 50 Hz
Característiques :
Film transport system and horizontal Jaw motion both drive by Panasonic motor
Canvi ràpid i segur de tub i collaret amb només treure el suport
L'optoelectrònica detecta la posició de la pel·lícula al coll per corregir l'excursió cinematogràfica
Sensor fotogràfic elèctric que induce el codi de color per controlar la longitud de la bossa
Estructura de bloqueig pneumàtic de pel·lícula única per evitar el desviament del dibuix de la pel·lícula
Ajust de temperatura independent
Diversos tipus de pel·lícules laminades segellables per escalfar, com ara PE/BOPP, CPP/BOPP, CPP/PE PE/NYLON,
Es pot executar a la màquina a base de paper d'alumini.
La màquina d'embalatge també es pot utilitzar per al segellat de pel·lícules de polietilè canviant l'equip corresponent
